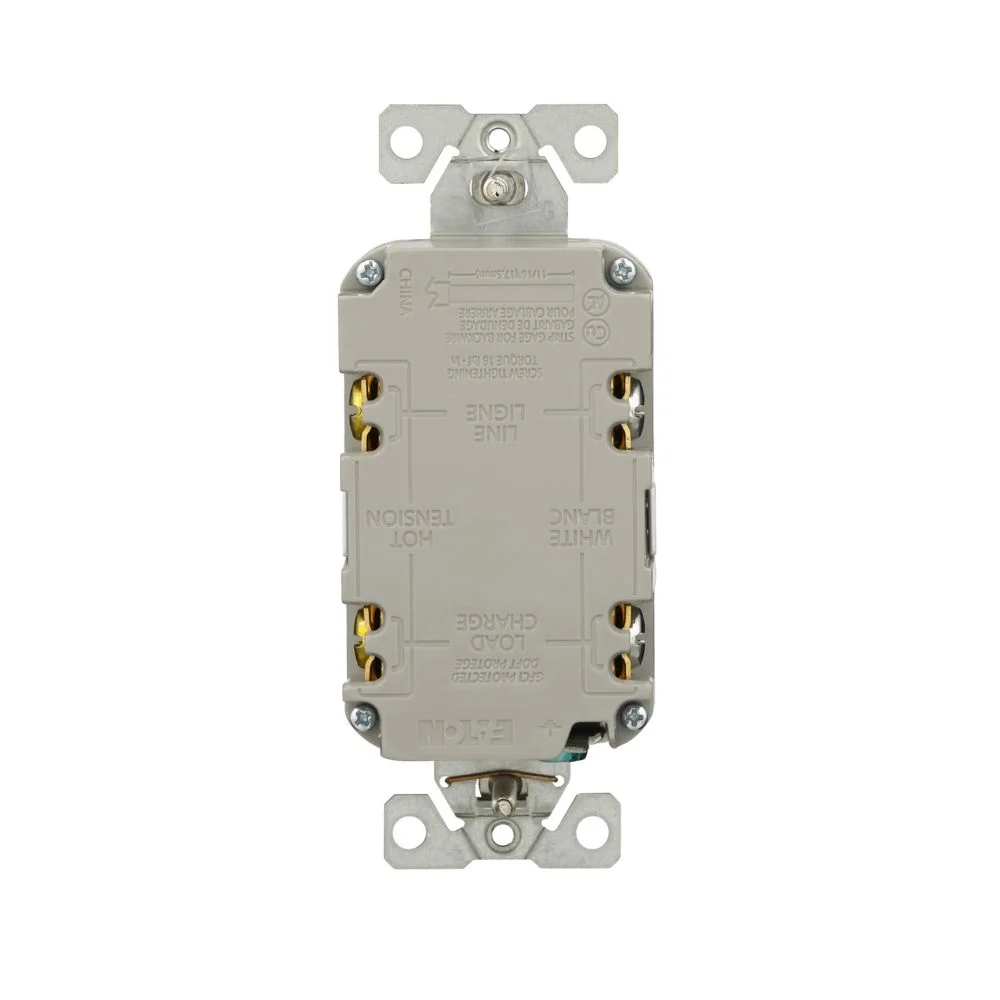

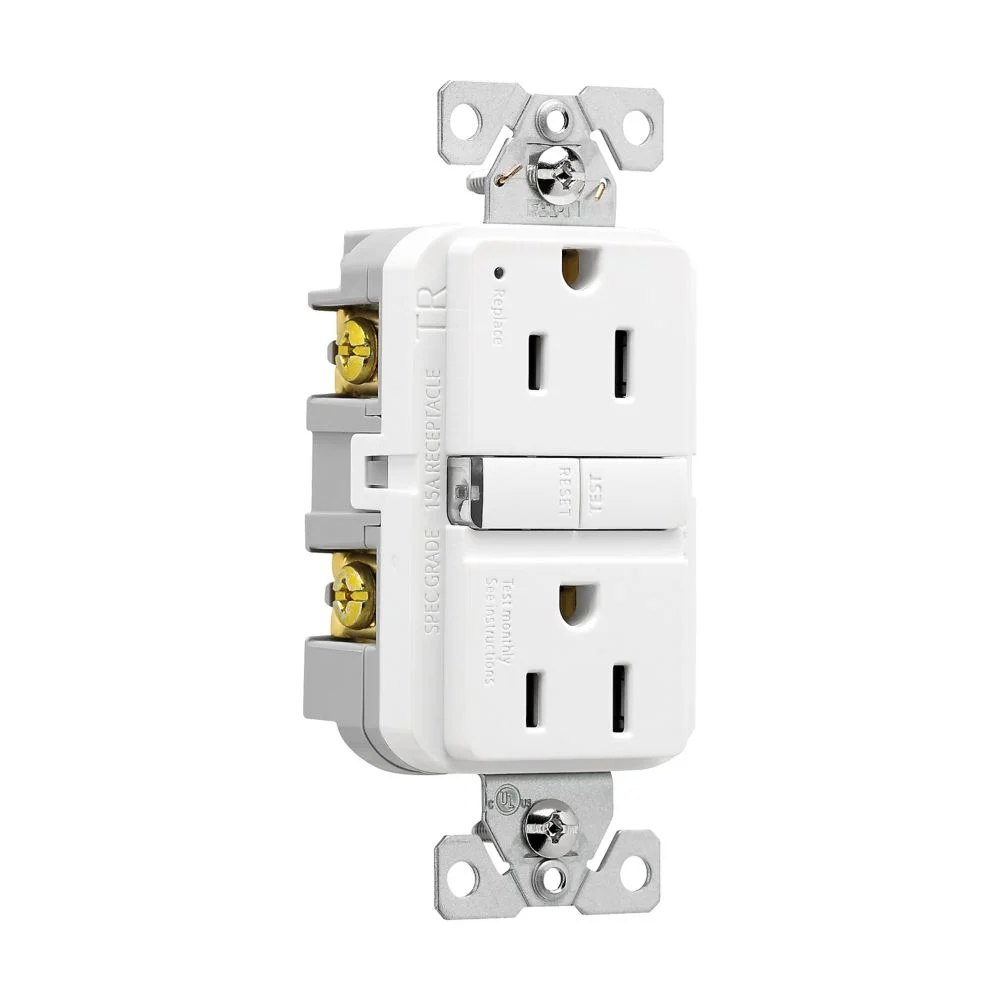

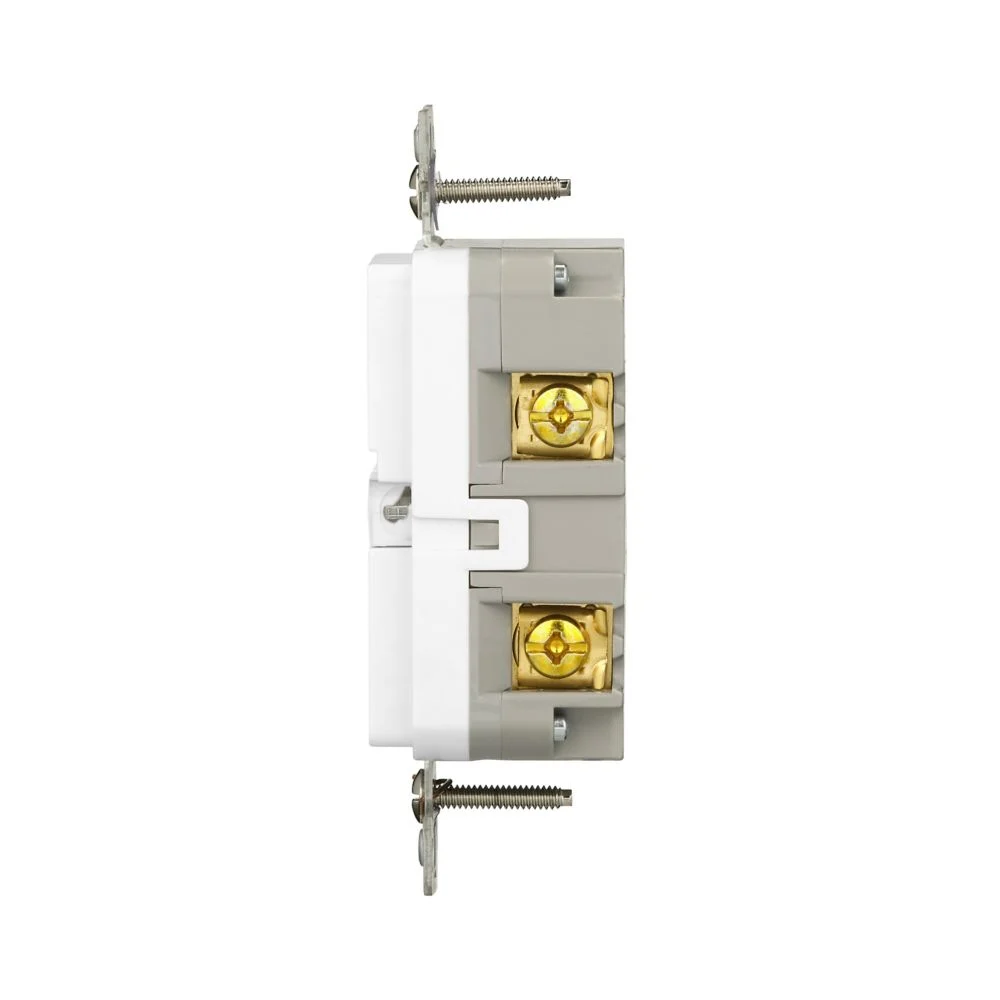

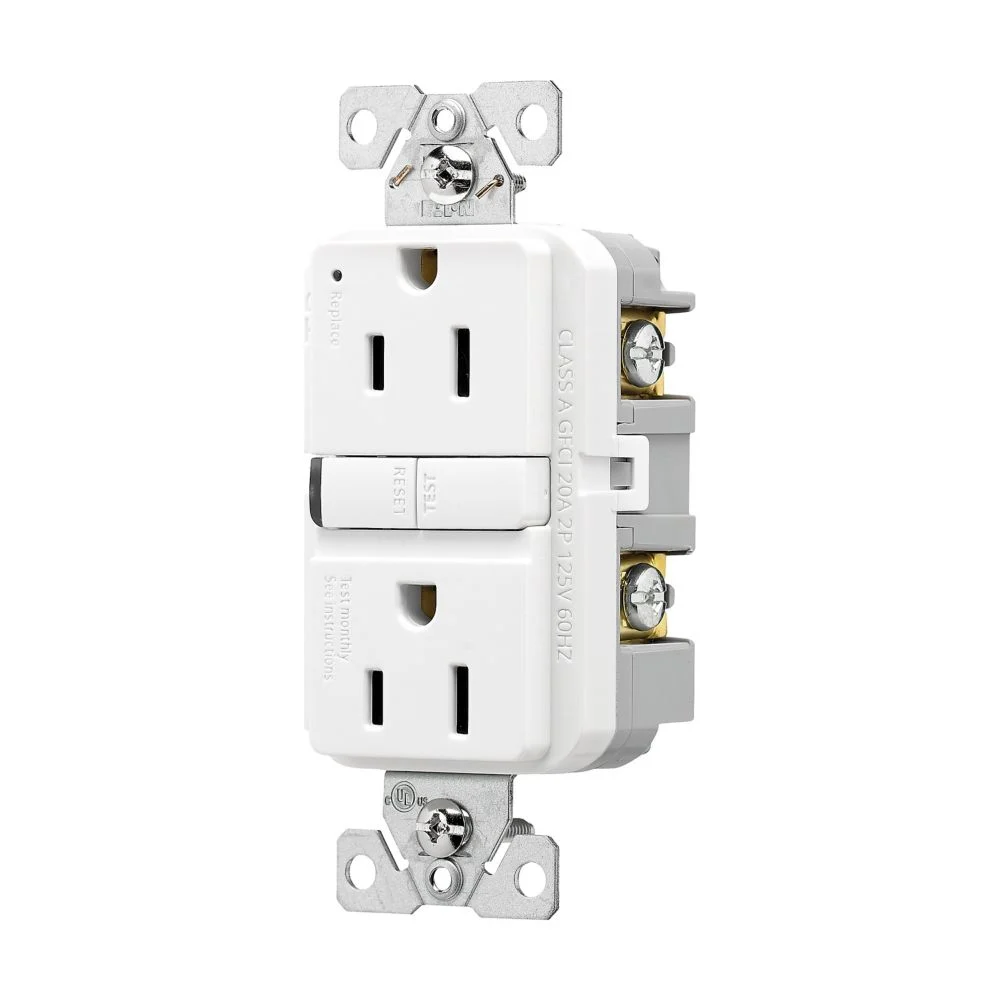

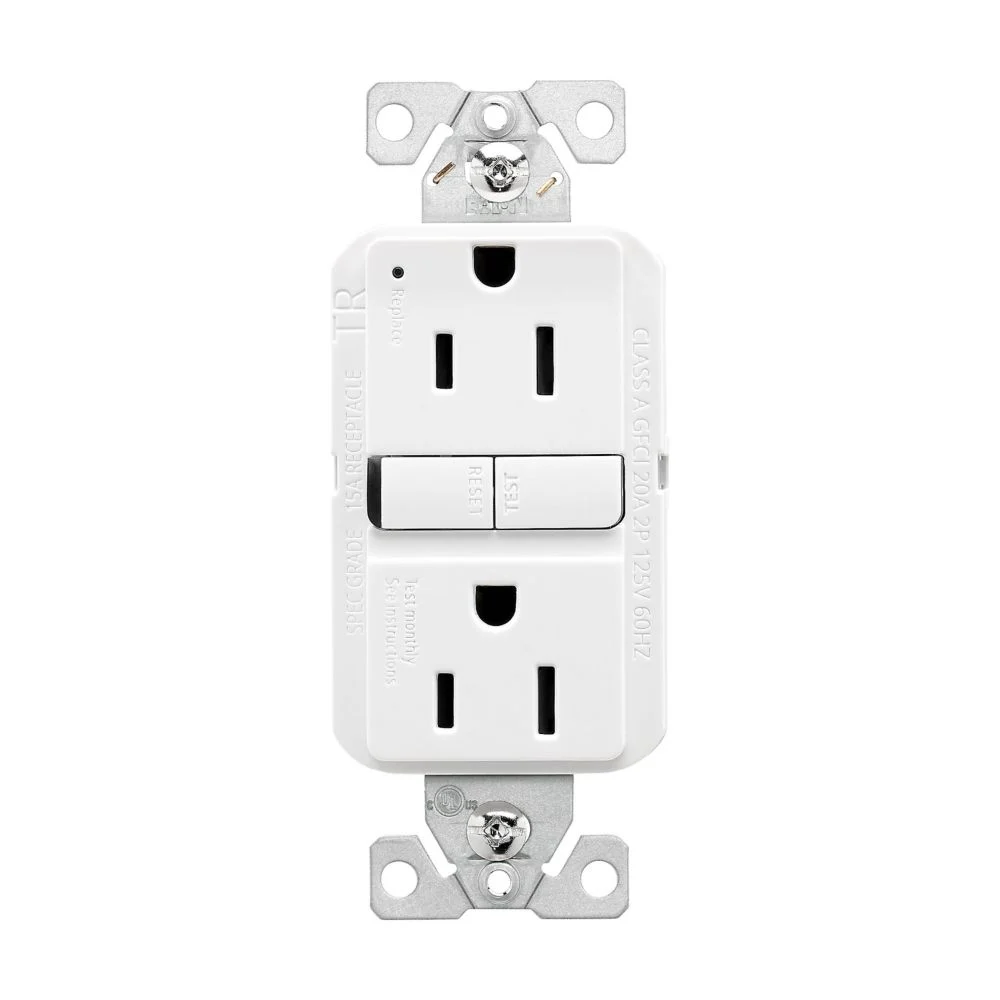

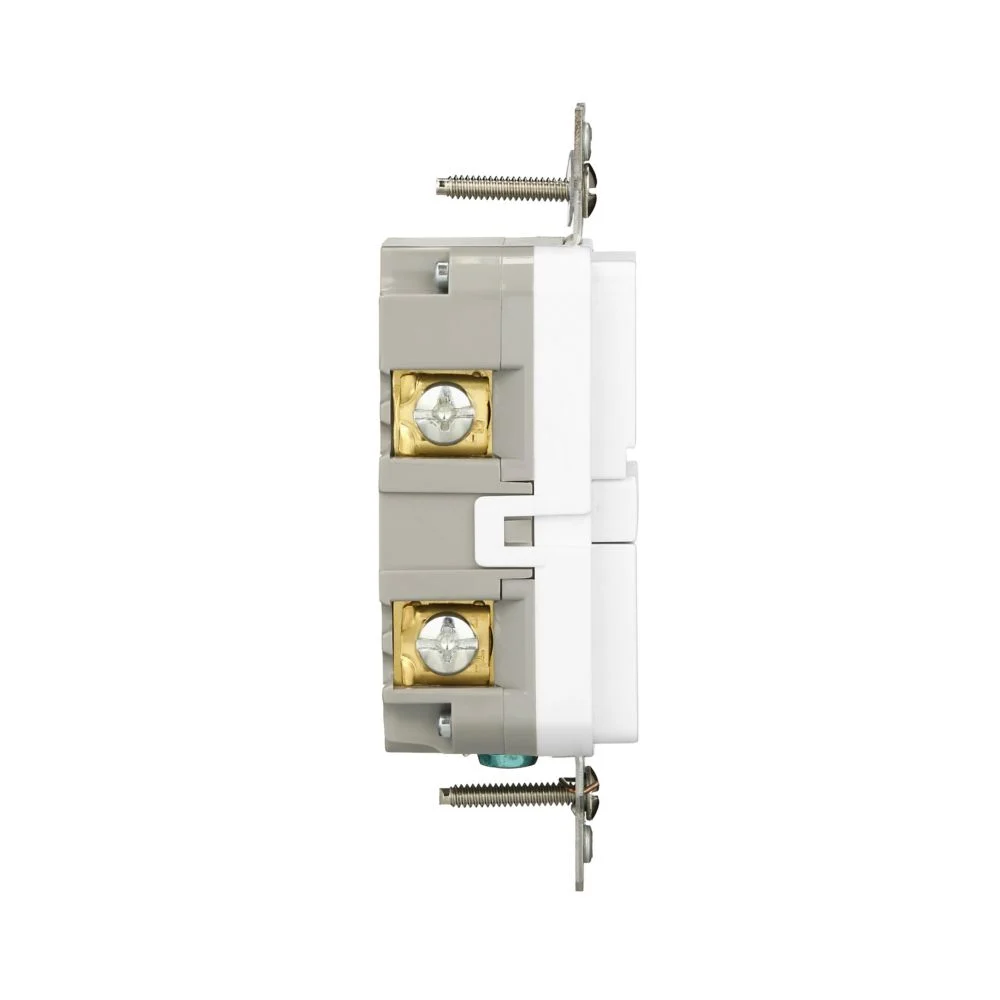

Eaton TRGF15W – Slim GFCI Receptacle Outlet Tamper Resistant – White – 15A TR

Introducing the Eaton Tamper-Resistant, Self-Test GFCI Receptacle, 15A, 125V, in White with a Slim Design.

The Eaton slim GFCI receptacles are engineered with quick installation, ease-of-use, and safety as top priorities. With one of the slimmest depths on the market, installation is swift and hassle-free. The sleek design not only enhances aesthetics but also ensures intuitive operation, all while complying with the latest UL943 and UL498 Safety Standards.

Technical Details:

• Allowable Wire Size: #14-10 AWG
• Amperage Rating: 15A
• Circuit Interrupter Type: GFCI
• Color: White
• Features: Tamper resistant
• NEMA Configuration: 5-15R
• Packaging Type: ED Box
• Special Features: Slim design
• Torque Rating: 16 lbf-in
• Type: Self-test
• Voltage Rating: 125V
• Wiring Method: Back and side wire

Product Dimensions:

• Length: 1.03 inches
• Width: 1.69 inches
• Height: 4.19 inches
• Volume: 7.294 cubic inches
• Weight: 3.8 pounds

Packaging Details:

• Length: 1.65 inches
• Width: 2.3 inches
• Height: 4.19 inches
• Weight: 4 pounds

Product Numbers:

• UPC Number: 032664013041
• EAN Number: 032664013041

Market Served:

• Commercial, Institutional, and Infrastructure: Education (Universities)
• Commercial, Institutional, and Infrastructure: Hospitality, Hotels, and Conference Centers
• Residential
• Residential: Manufactured Housing
• Residential: Multi-Family Apartment
• Residential: Single Family

Application:

• Commercial/Institutional Buildings/Structures: Aftermarket
• Residential Buildings & Facilities: Other
• Residential Buildings & Facilities: Aftermarket

Certifications:

• NOM
• cULus Listed

Additional Information:

• ECCN Number: EAR99
• Country of Origin: CN
